    High Pressure BOP Testing Unit For BOP And Wellhead Testing Pump

    Ask Lasest Price
    Brand Name : HuiChi (HC)
    Model Number : BOP Testing Unit Series
    Certification : API 16D
    Price : $3000-30000/Set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20 Sets Per Month
    Delivery Time : Within 5-30 Days
    • Product Details
    • Company Profile

    High Pressure BOP Testing Unit For BOP And Wellhead Testing Pump

    Product Description:

    The BOP control device products produced and sold by our company Huichi Petroleum are: complete models, quality assurance, and timely delivery. We warmly welcome new and old customers at home and abroad to come for inspection and order, and win-win cooperation!

    The ground BOP control device (hereinafter referred to as the control device) is an important equipment for controlling the wellhead BOP group and the hydraulic throttle valve and well-killing valve. It is an indispensable device for preventing blowouts in drilling and well repair operations. Correct use and maintenance of the control device are very important.

    Composition: It is mainly composed of oil tanks, pump groups, accumulator groups, manifolds, various valves, instruments and electric control boxes, etc.

    Product Features:

    1. Stable operation, small size, light weight, low noise, easy maintenance, high efficiency;

    2. Can be controlled locally and remotely, monitor, record, print, and track record values;

    3. Can be used in factories or installed on vehicles on site;

    4. According to API 16D;

    5. Equipped with three independent power sources. The FKQ series is equipped with electric oil pump/manual pump/pneumatic oil pump;

    6. Special orders can be made when customers have special technical indicators;

    7. The electric oil pump is equipped with an automatic start and stop control device. Even if the automatic control device fails during normal operation, the overflow valve can overflow quickly to ensure system safety;

    8. The opening and closing actions of each blowout preventer are controlled by the corresponding three-position four-way rotary valve. The FKQ series control device can be directly changed manually or by remote control of the rotary valve by the driller's platform;

    9. The annular blowout preventer control circuit of the FKQ series control device is equipped with a pressure regulating valve, which can adjust the control pressure of the annular blowout preventer.

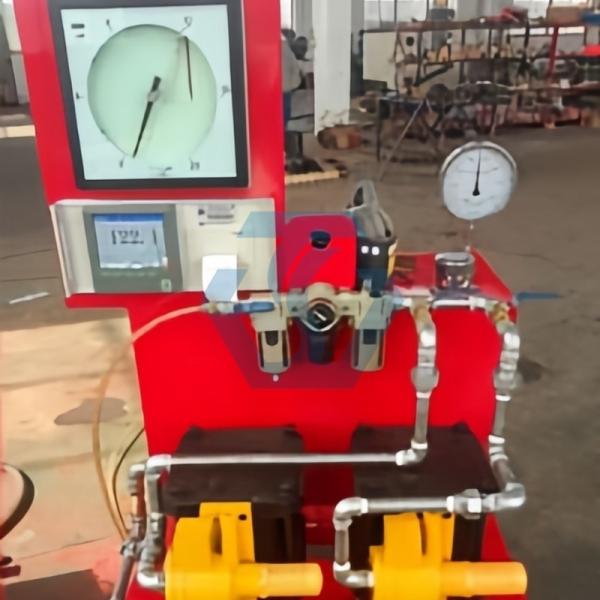

    Product Display:

    High Pressure BOP Testing Unit For BOP And Wellhead Testing PumpHigh Pressure BOP Testing Unit For BOP And Wellhead Testing PumpHigh Pressure BOP Testing Unit For BOP And Wellhead Testing PumpHigh Pressure BOP Testing Unit For BOP And Wellhead Testing Pump

    Product Application:

    Oilfield Well Drilling,Energy,Mining.

    Product Model Parameters:

    System nominal pressure21 Mpa3000 psi
    System maximum working pressure34.5MPa5000psi
    System pressure adjustment range0~14 Mpa0~2000 psi
    Accumulator nitrogen filling pressure7±0.7 Mpa1000±100 psi
    Pressure controller setting range19~21 Mpa2700~3000 psi
    Liquid-gas switch setting range17.5~21MPa2500~3000 psi
    Gas source pressure0.65~0.8 Mpa93~115 psi
    Power supply380±19 V/50Hz
    Ambient temperature-40~120℃
    Note: Special ordering is required when exceeding the above technical indicators.

    Product Package:

    Iron box or iron frame , or customized according to customer requirements , or according to customer requirements.

    Product Detection:

    100% tested before delivery.

    Product Delivery Method:

    Express, truck , train , air , sea , or customized according to customer requirements.
