Product overview
The External Hook is a professional tool used for efficient salvage
of fallen objects (such as broken drill pipes, casings, metal
debris, etc.) in oilfield drilling and well repair operations. It
is made of high-strength alloy material and optimized hook body
design, and quickly restores the continuity of wellbore operations
through precise hooking and locking functions. It is suitable for a
variety of well types and complex working conditions (high
temperature, high pressure, acidic environment), significantly
reducing the risk of stuck drill and downtime losses, and is the
core salvage equipment for oilfield rescue and well repair
operations.
________________________________________
Working principle
The External Hook produced and sold by our company Huichi petro is
usually made of high-strength alloy steel and has the
characteristics of durability. Its structural design is unique, and
the hook part has been specially treated with good toughness and
wear resistance. During the salvage operation, the External Hook is
connected to the bottom of the drill pipe and lowered to the
location of the fallen object in the well through the drill pipe.
The operator controls the rotation and lowering depth of the drill
pipe according to the downhole situation, so that the hook part of
the outer hook can accurately hook the fallen objects. After
confirming that the outer hook has firmly hooked the fallen
objects, slowly lift the drill pipe and use the grip of the outer
hook to salvage the fallen objects from the well. The design of the
outer hook can adapt to fallen objects of different shapes and
sizes, which improves the success rate of salvage operations.
________________________________________
Core functions and features
1. Efficient salvage design
o Strengthened hook structure: The hook head is forged with
wear-resistant alloy steel, and the hook tip angle and curvature
are optimized. It can accurately hook the fallen objects in the
well (such as fish tops and casing fractures), and the gripping
force is more than 150kN.
o Multi-specification adaptation: Supports API standard casing
(5″-13⅜″), adapts to vertical wells, horizontal wells and
high-angle well operations, and is compatible with continuous
tubing (CTU) and conventional drill pipe systems.
2. Corrosion and wear resistance
o The material is made of chrome-molybdenum steel or nickel-based
alloy, which can withstand high temperature (-30℃ to 150℃), high
pressure (≤10000psi) and corrosive environment containing hydrogen
sulfide, extending the service life of the tool.
3. Flexible operation mode
o Rotating outer hook (optional): The hook body can rotate 360°,
and cooperate with the jar or hydraulic disassembly frame (maximum
torque 300kN·m) to enhance the salvage efficiency and reduce the
number of trips.
o Modular design: The split structure of the hook head and the
connecting rod supports the rapid replacement of wear parts, and
the maintenance cost is reduced by more than 30%.
4. Intelligent monitoring function (optional)
o Integrated pressure sensor, real-time feedback of hook load data
to the ground system, early warning of overload risks, and ensuring
operation safety.
________________________________________
Technical parameters
- Applicable well types: vertical wells, horizontal wells, high-angle
wells
- Working pressure: ≤10000psi
- Specification range: Φ50mm-Φ300mm (supports non-standard
customization)
- Connection method: API standard NC26-NC70 threaded interface
- Temperature range: -30℃ to 150℃
- Adapter tools: jar, hydraulic disassembly and assembly rack,
continuous tubing system
- Material standard: in line with API Spec 5B, ISO 9001 certification
| Model | Product Code | O.D.(in) | Connection | For Casing/Tubing Size(in) |
| WG73 | L23-7300 | 2-7/8 | 2-3/8 Tubing coupling | 3-1/2 Tubing |
| WG95 | L23-9500 | 3-3/4 | NC26 | 4-1/2 Tubing |
| WG114 | L23-11400 | 4-1/2 | NC31 | 5-1/2 Casing |
| WG136 | L23-13600 | 5-3/8 | NC31 | 6-5/8 Casing |
| WG150 | L23-15000 | 5-8/9 | NC38 | 7 Casing |
| WG176 | L23-17600 | 6-8/9 | NC38 | 8-5/8 Casing |
| WG190 | L23-19000 | 7-1/2 | NC38 | 9-5/8 Casing |
________________________________________
Product advantages
- High cost performance: 30% lower operating cost than traditional salvage tools, and the
reuse rate is ≥50 times.
- Precise salvage: Optimize the hook design to improve the success rate of grabbing,
reduce invalid operation time, and increase efficiency by 40%.
- Economic and durable: Highly wear-resistant materials and modular structure reduce
maintenance costs and extend tool life.
- Safe and reliable: ISO 9001, API 7-1 certified, in line with HSE operating standards.
- Customized service: Provide customized external hook solutions according to different
customer needs and actual salvage conditions. Suitable external
hook models and specifications can be tailored for customers based
on factors such as wellbore conditions and falling object
characteristics.
________________________________________
Application scenarios
The External Hook produced and sold by our company Huichi Petro is
widely used in drilling operations in various oil fields, including
onshore oil fields, offshore oil fields, deep wells, ultra-deep
wells, and drilling operations under complex geological conditions.
As long as there is a falling object in the well, the external hook
can be used for salvage. Common application scenarios include
salvaging various downhole tools and equipment components such as
drill pipe joints, drill bits, and valves.
- Drilling rescue: salvage broken drill pipes, drill collars and other falling
objects in the well to resume drilling operations.
- Well repair operations: remove casing fragments or stuck tools in the well to repair the
integrity of the wellbore.
- Abandoned well plugging: Recover metal residues in abandoned wellbore to facilitate
environmentally friendly well plugging treatment.
________________________________________
After-sales service
Our company Huichi Petro has a professional after-sales service
team that can provide customers with comprehensive technical
support and after-sales service.
- Provide global 24-hour technical support and on-site operation
training, covering major oil-producing areas such as the Middle
East, North America, and Southeast Asia.
- Free replacement of non-human damaged parts during the warranty
period, and provide customized salvage solution design services.
________________________________________

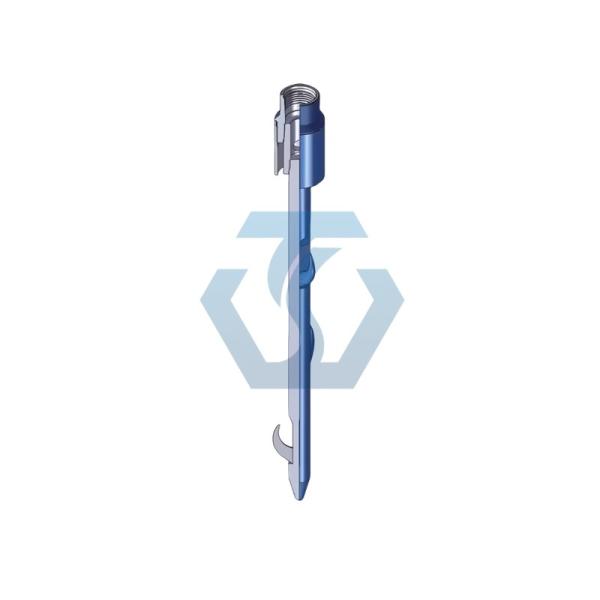

Product display:
________________________________________
Product package:
Product packaging: iron box or iron frame, wooden pallet, wooden
box, bulk or customized according to customer requirements.
________________________________________
Product detection:
100% inspection will be carried out before shipment, and video
image data and inspection reports will be provided.
________________________________________
Accepted delivery terms:
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express
Delivery, DAF, DES.
